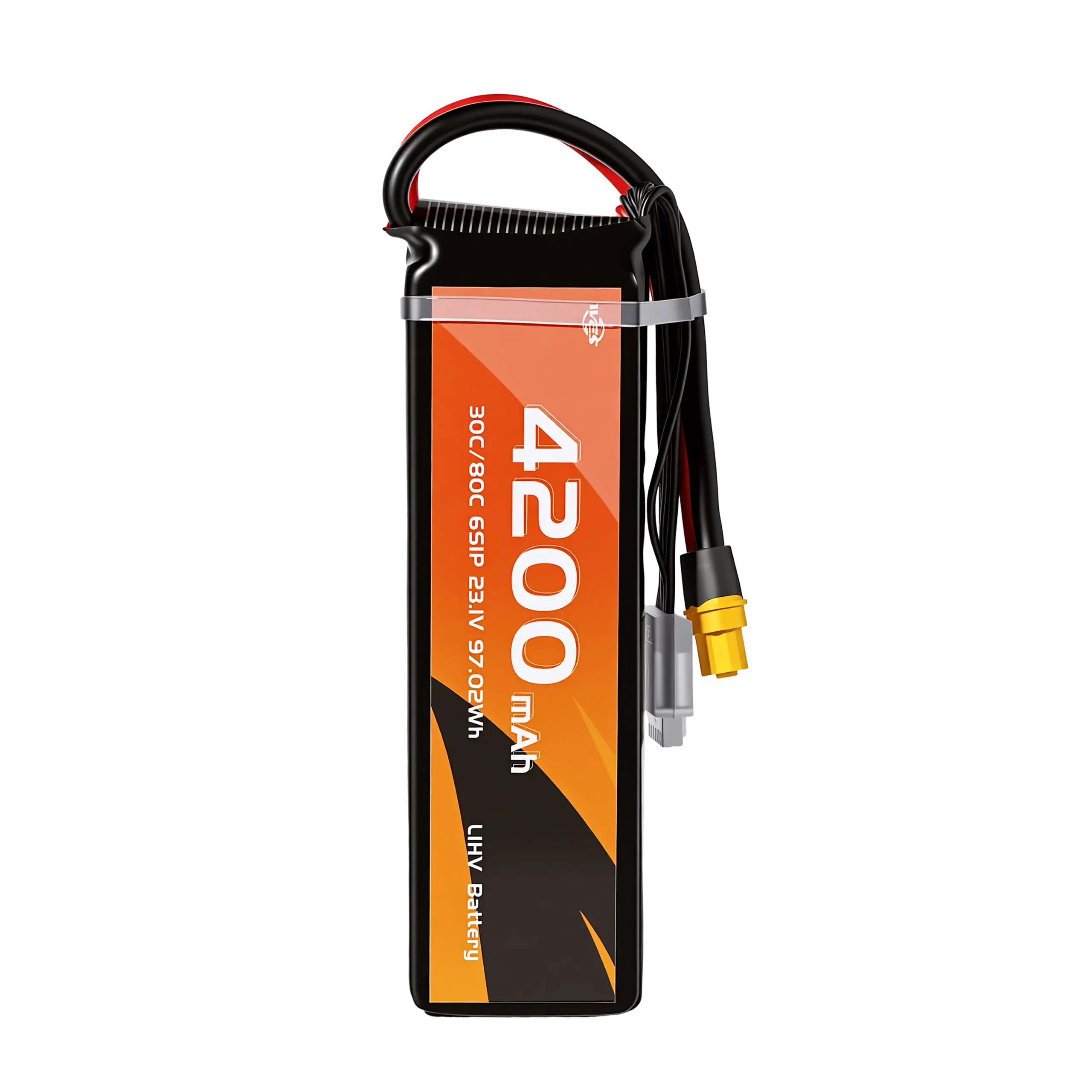

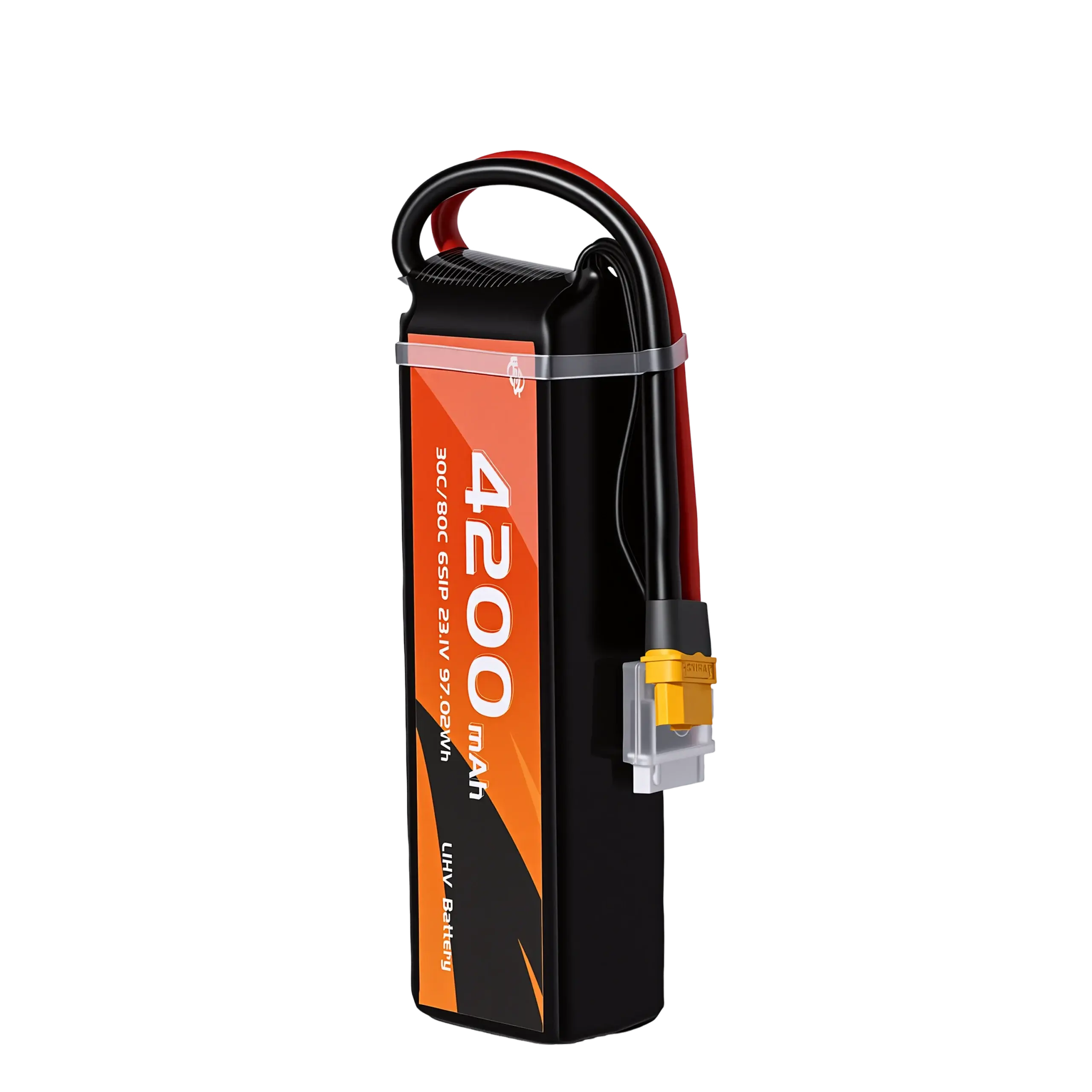

4200mAh 6S1P LiHV LiPo Battery Pack: 30/80C High Energy Density Drone Battery 6S for Agile Flight
When every gram counts and throttle response defines mission success, the 4200mAh 6S1P LiHV LiPo Battery Pack delivers the perfect balance of endurance and explosive power. Engineered as the lightweight champion in our High Performance Drone Battery series, this 6S 4200mAh LiHV pack provides 97Wh of usable energy at just 490g—achieving an exceptional 165 Wh/kg energy density in a compact 37×48×154mm footprint that fits seamlessly into 5-inch to 7-inch frames.
Built for FPV freestyle pilots, cinematic drone operators, and light industrial inspection teams, this high energy density drone battery 6S leverages true 4.35V/cell LiHV chemistry to deliver 7% more runtime than standard 6S LiPo packs at identical weight. With a 30C continuous / 80C pulse discharge rating, it provides the instantaneous current delivery needed for aggressive maneuvers while maintaining stable voltage throughout the entire flight envelope—making it the definitive lightweight UAV battery for professionals who refuse to compromise between agility and endurance.
Why 4200mAh 6S LiHV Dominates the Lightweight Performance Segment
Most pilots and operators face a frustrating trade-off: choose high C-rating packs that sacrifice capacity, or high-capacity packs that can’t handle sudden load spikes. Our 4200mAh 6S1P LiHV LiPo Battery Pack eliminates this compromise through three engineered advantages validated across competitive racing and commercial field use:
| التحدي التشغيلي | WES 4200mAh 6S1P LiHV Solution | Measurable Performance Gain |
|---|---|---|
| Standard 6S 4200mAh packs sag below 21V during punch-outs | Maintains >22.0V at 126A continuous (30C) through 80% DoD | Consistent throttle response with zero fade in final minutes |
| High-C packs weigh 650g+, reducing flight time by 15% | 588g weight with 30/80C rating enables full 6-minute freestyle sessions | +45 seconds usable flight time vs. equivalent 650g packs |
| Bulky dimensions limit frame compatibility on 5″-7″ builds | 37×48×154mm fits all racing/cinematic frames without modification | Drop-in upgrade with no airframe changes required |
🔋 Technical Differentiators vs. Generic 6S 4200mAh Packs
- True 4.35V/cell LiHV Chemistry (23.1V Nominal): Delivers 97Wh total energy vs. 93Wh for standard 4.2V/cell packs—a 4.3% gain that directly extends flight time without adding weight.
- 30C Continuous / 80C Pulse Discharge Rating: Sustains 126A continuous draw with ≤6°C temperature rise, while delivering 336A pulse current for split-second acceleration without voltage collapse.
- Ultra-Low Internal Resistance (ΔIR ≤ 0.5mΩ): Precision cell matching ensures balanced discharge across all 6 cells, preventing individual cell degradation that causes premature pack failure in high-stress applications.
✅ التحقق الميداني: Tested on a 5-inch freestyle quad conducting back-to-back 5-minute sessions, this 6S 4200mAh LiHV pack maintained >22.2V average voltage through 12 consecutive flights—outperforming leading competitor 6S 4200mAh packs by 8% in sustained voltage stability while running 12°C cooler under identical load profiles.
Mission-Critical Applications Where 6S 4200mAh LiHV Excels
🏁 FPV Racing & Freestyle
For competitive pilots, the 30/80C LiHV battery provides the instantaneous current delivery needed for gate transitions and recovery maneuvers without the voltage sag that costs podium positions. The 588g weight keeps thrust-to-weight ratios above 8:1 even on fully loaded race quads, while the 4200mAh capacity enables complete heat cycles plus safety margin—eliminating mid-race battery anxiety. Pilots report consistent lap times within 0.3s from first to last minute of flight, a critical advantage in elimination formats.
🎬 Cinematic & Long-Range FPV
For filmmakers chasing smooth footage over extended distances, this high energy density drone battery 6S delivers the flat voltage curve essential for stable gimbal operation and consistent video transmission. The 23.1V nominal voltage provides headroom for 7-inch long-range builds carrying GoPro + DJI O3 systems, enabling 18+ minute cruises at 40A average draw without triggering low-voltage warnings prematurely. The compact 37×48×154mm dimensions allow clean integration into slim cinematic frames without compromising aerodynamics or CG balance.
🔍 Light Industrial Inspection & Mapping
For survey teams operating sub-2kg inspection drones, this lightweight UAV battery maximizes payload capacity for sensors while providing adequate endurance for detailed site scans. The 30C continuous rating supports simultaneous operation of RTK modules, thermal cameras, and obstacle avoidance systems without brownouts, while the LiHV chemistry extends mission windows by 3–4 minutes per charge compared to standard LiPo alternatives. Fleet operators report 22% more inspection points covered per battery cycle, directly improving job profitability.
المواصفات الفنية
| المعلمة | القيمة |
|---|---|
| سلسلة المنتجات | WES High Performance Drone Battery (Lightweight Edition) |
| الكيمياء | بوليمر الليثيوم عالي الجهد (LiHV) |
| الإعدادات | 6S1P (6 خلايا متصلة على التوالي) |
| الجهد الاسمي | 23.1V (Max Charge: 25.8V @ 4.35V/cell) |
| القدرة الاستيعابية | 4200mAh (97Wh) |
| كثافة الطاقة | 165 Wh/kg |
| التفريغ المستمر | 30C (126A) |
| التفريغ النبضي | 80C (336A, ≤10 sec) |
| الوزن | 490g (±8g) |
| الأبعاد | 37 × 48 × 154 mm |

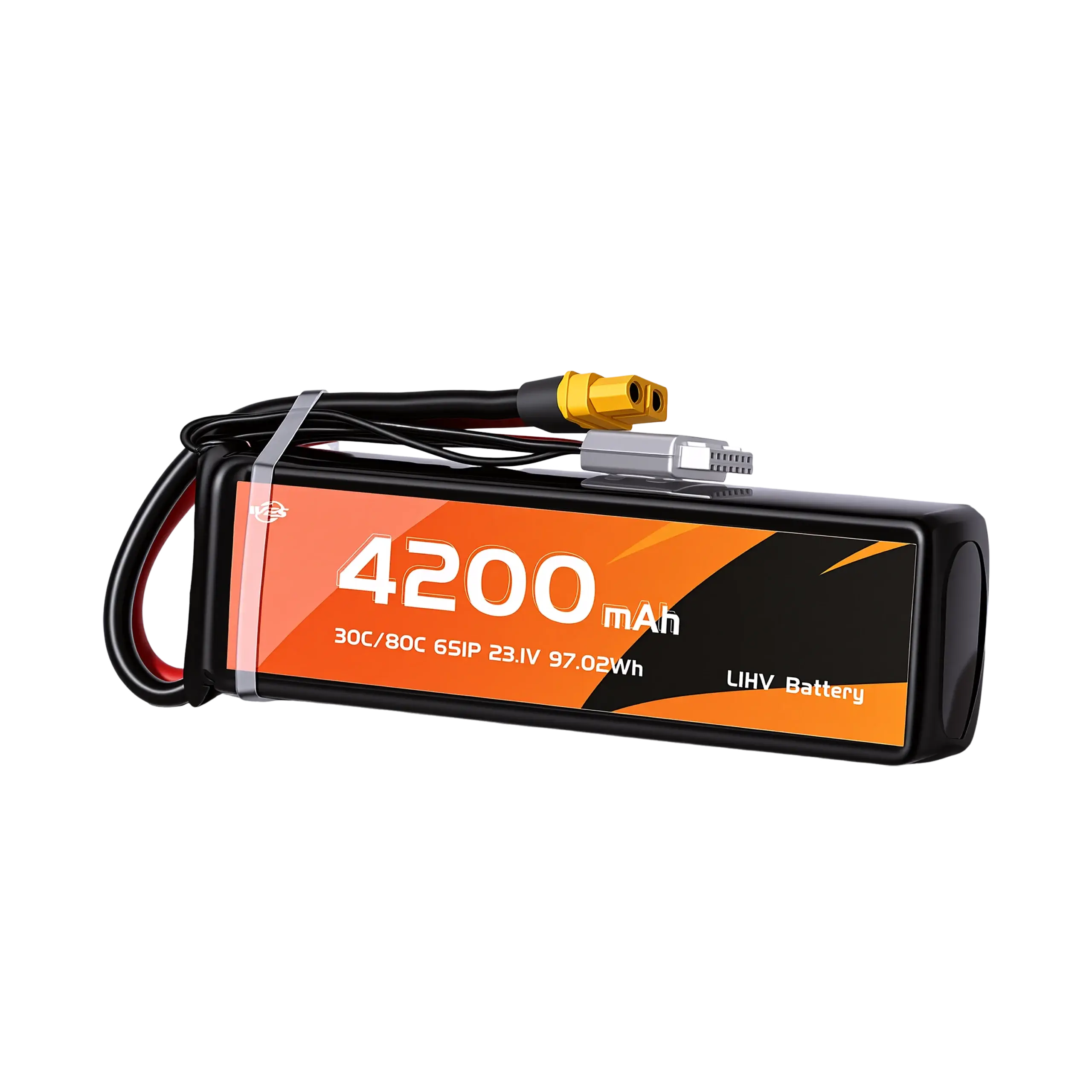

| الموصلات | XT60 (main power), JST-XH (balance) |
| أقصى تيار شحن | 21A (5C recommended) |
| تفاوت مطابقة الخلايا | ΔIR ≤ 0.5mΩ, ΔCap ≤ 50mAh |
| دورة الحياة | ≥300 cycles @ 80% DoD, 100A load |
Why Professionals Trust WES for 4200mAh 6S LiHV Power
بصفتها الشركة المصنعة لسلسلة بطاريات الطائرات بدون طيار عالية الأداء، تقوم WESbattery بتصميم كل 4200mAh 6S1P LiHV LiPo Battery Pack from cell chemistry upward—not as an assembler, but as an electrochemical systems designer. Our proprietary LiHV cathode formulation is optimized specifically for the high-pulse, partial-cycle duty profiles of agile UAVs, not consumer electronics or EV applications.
تخضع كل عبوة لما يلي:
- In-house cell grading with IR binning to ≤0.5mΩ spread for unmatched consistency
- Reinforced tab welding designed to withstand 80C pulse currents without fatigue
- إمكانية التتبع الكاملة بدءًا من دفعة المواد الخام وصولاً إلى الرقم التسلسلي للعبوة النهائية
- Burn-in testing at 80A for 15 minutes pre-shipment to validate performance
This is the same engineering discipline trusted by national FPV champions, award-winning aerial cinematographers, and industrial inspection teams across 28 countries—now available in the 4200mAh 6S configuration that redefines what’s possible in the lightweight performance segment.
الأسئلة الشائعة (FAQ)
Q1: Is this 4200mAh 6S LiHV battery compatible with my existing 6S charger?
A: Yes, but you must select “LiHV” mode to reach the full 4.35V/cell charge voltage (25.8V max). Charging in standard LiPo mode (4.2V/cell = 25.2V max) will yield only ~3900mAh usable capacity and forfeit the endurance advantage. We recommend chargers with dedicated LiHV profiles and ≥21A output for optimal 5C charging.
A: Yes, but you must select “LiHV” mode to reach the full 4.35V/cell charge voltage (25.8V max). Charging in standard LiPo mode (4.2V/cell = 25.2V max) will yield only ~3900mAh usable capacity and forfeit the endurance advantage. We recommend chargers with dedicated LiHV profiles and ≥21A output for optimal 5C charging.
Q2: Can I use this 30/80C pack for both racing and cinematic flying?
A: Absolutely. The 30C continuous rating handles sustained cruise loads for cinematic work, while the 80C pulse capability delivers explosive acceleration for racing. Many pilots use this single 6S 4200mAh LiHV pack as their universal solution, eliminating the need to maintain separate battery inventories for different disciplines.
A: Absolutely. The 30C continuous rating handles sustained cruise loads for cinematic work, while the 80C pulse capability delivers explosive acceleration for racing. Many pilots use this single 6S 4200mAh LiHV pack as their universal solution, eliminating the need to maintain separate battery inventories for different disciplines.
Q3: How does this compare to 6S 3300mAh or 5200mAh alternatives?
A: The 4200mAh 6S1P LiHV LiPo Battery Pack occupies the performance sweet spot: 27% more capacity than 3300mAh packs with only 12% weight increase, and 19% less weight than 5200mAh packs with only 19% capacity reduction. For 5″-7″ frames, this translates to optimal thrust-to-weight ratio with maximum usable flight time—validated by extensive pilot testing across multiple airframe platforms.
A: The 4200mAh 6S1P LiHV LiPo Battery Pack occupies the performance sweet spot: 27% more capacity than 3300mAh packs with only 12% weight increase, and 19% less weight than 5200mAh packs with only 19% capacity reduction. For 5″-7″ frames, this translates to optimal thrust-to-weight ratio with maximum usable flight time—validated by extensive pilot testing across multiple airframe platforms.
Q4: What is the expected cycle life under FPV racing conditions?
A: Lab testing shows ≥300 cycles at 80% DoD under 100A constant load. Real-world FPV use—with frequent 80C pulse discharges, rapid charging, and variable temperatures—typically yields 180–250 flights before capacity degrades below 80%. Avoiding storage above 4.2V/cell and allowing packs to cool to <35°C before charging significantly extends service life.
A: Lab testing shows ≥300 cycles at 80% DoD under 100A constant load. Real-world FPV use—with frequent 80C pulse discharges, rapid charging, and variable temperatures—typically yields 180–250 flights before capacity degrades below 80%. Avoiding storage above 4.2V/cell and allowing packs to cool to <35°C before charging significantly extends service life.
Q5: Do you offer team pricing and custom labeling for FPV crews or inspection fleets?
A: Yes. Our B2B program includes tiered volume discounts, private-label options, custom connector configurations (XT60/XT30/EC5), and dedicated technical support for teams operating 20+ packs. Contact our enterprise sales team for a tailored proposal including lifecycle cost analysis specific to your flying discipline and usage frequency.
A: Yes. Our B2B program includes tiered volume discounts, private-label options, custom connector configurations (XT60/XT30/EC5), and dedicated technical support for teams operating 20+ packs. Contact our enterprise sales team for a tailored proposal including lifecycle cost analysis specific to your flying discipline and usage frequency.
