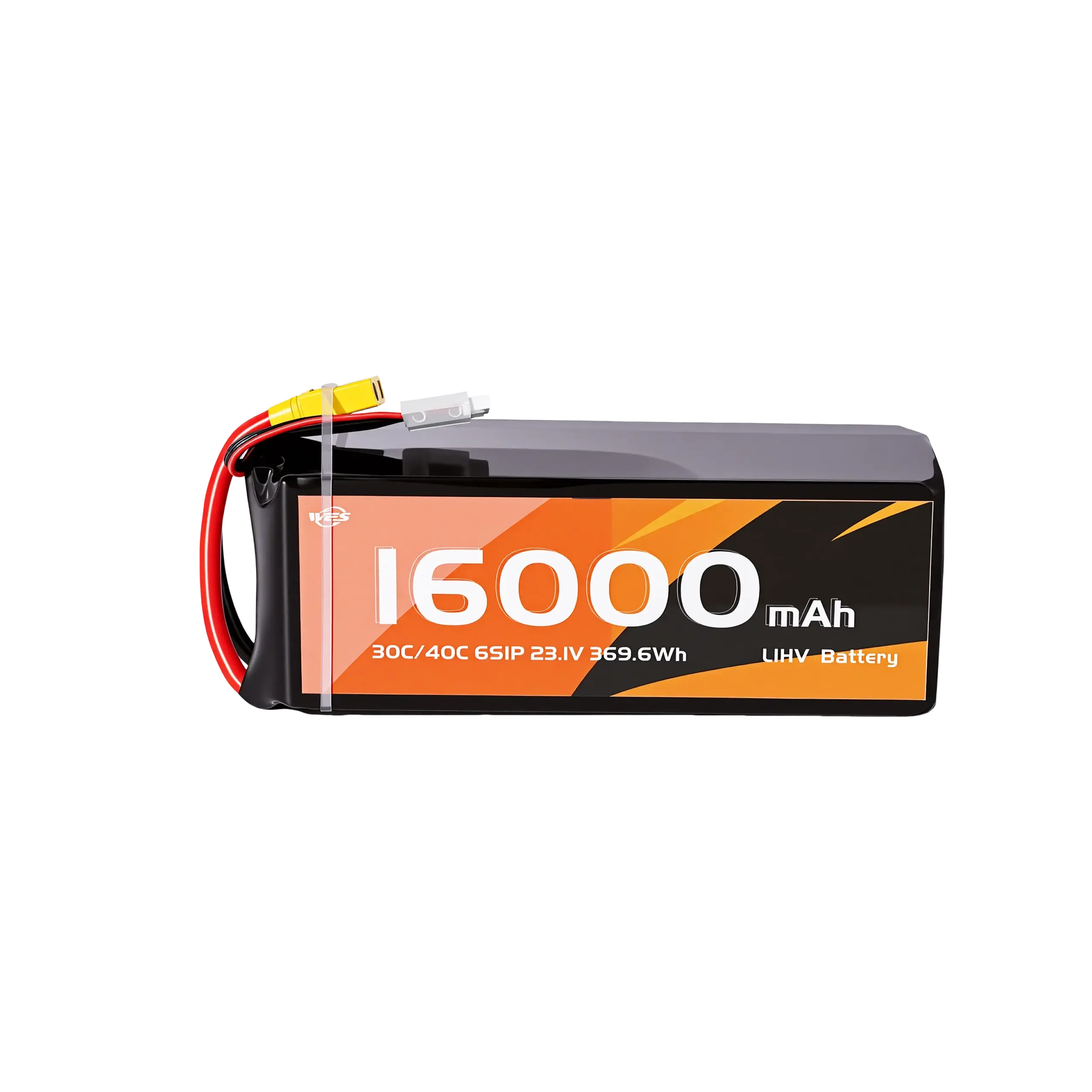

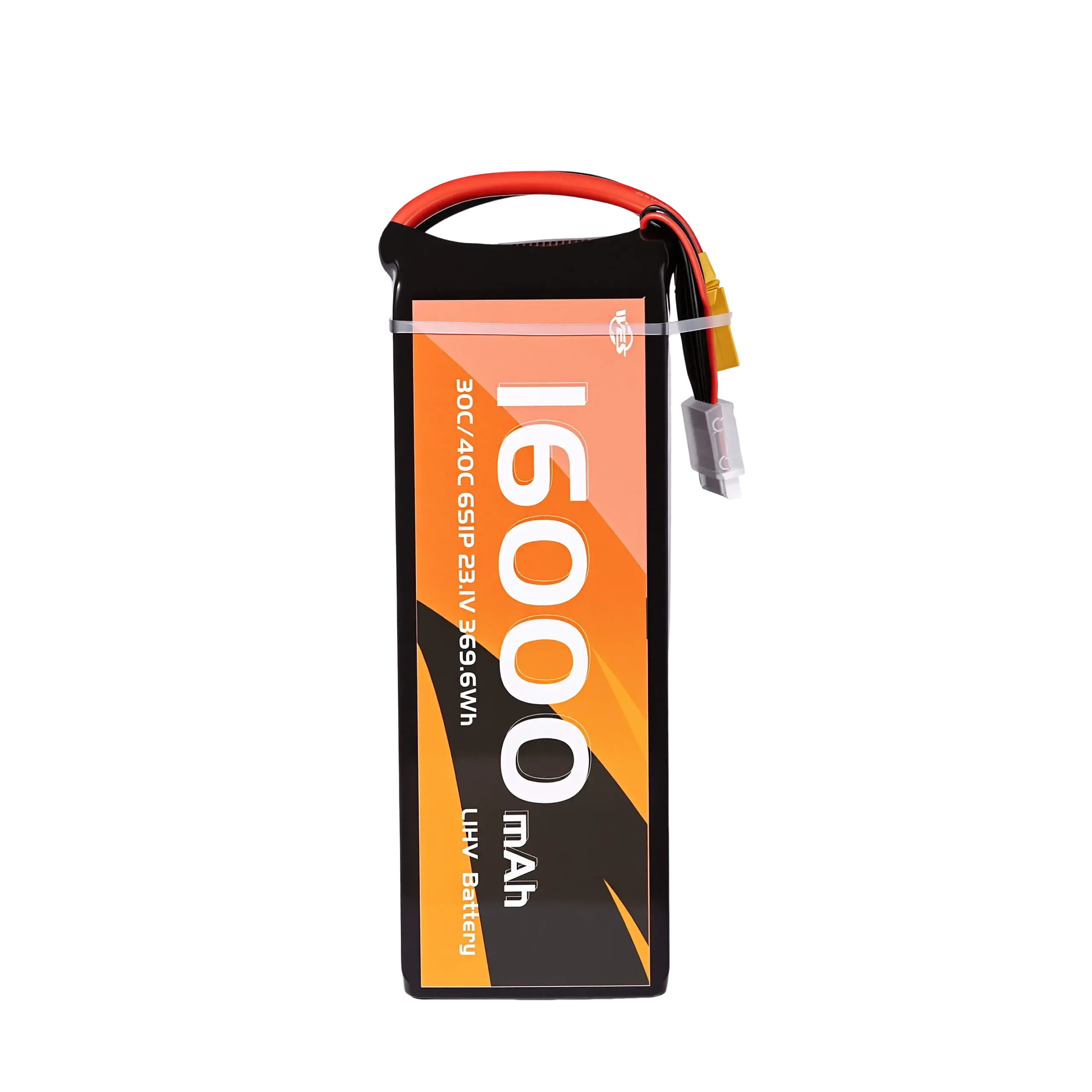

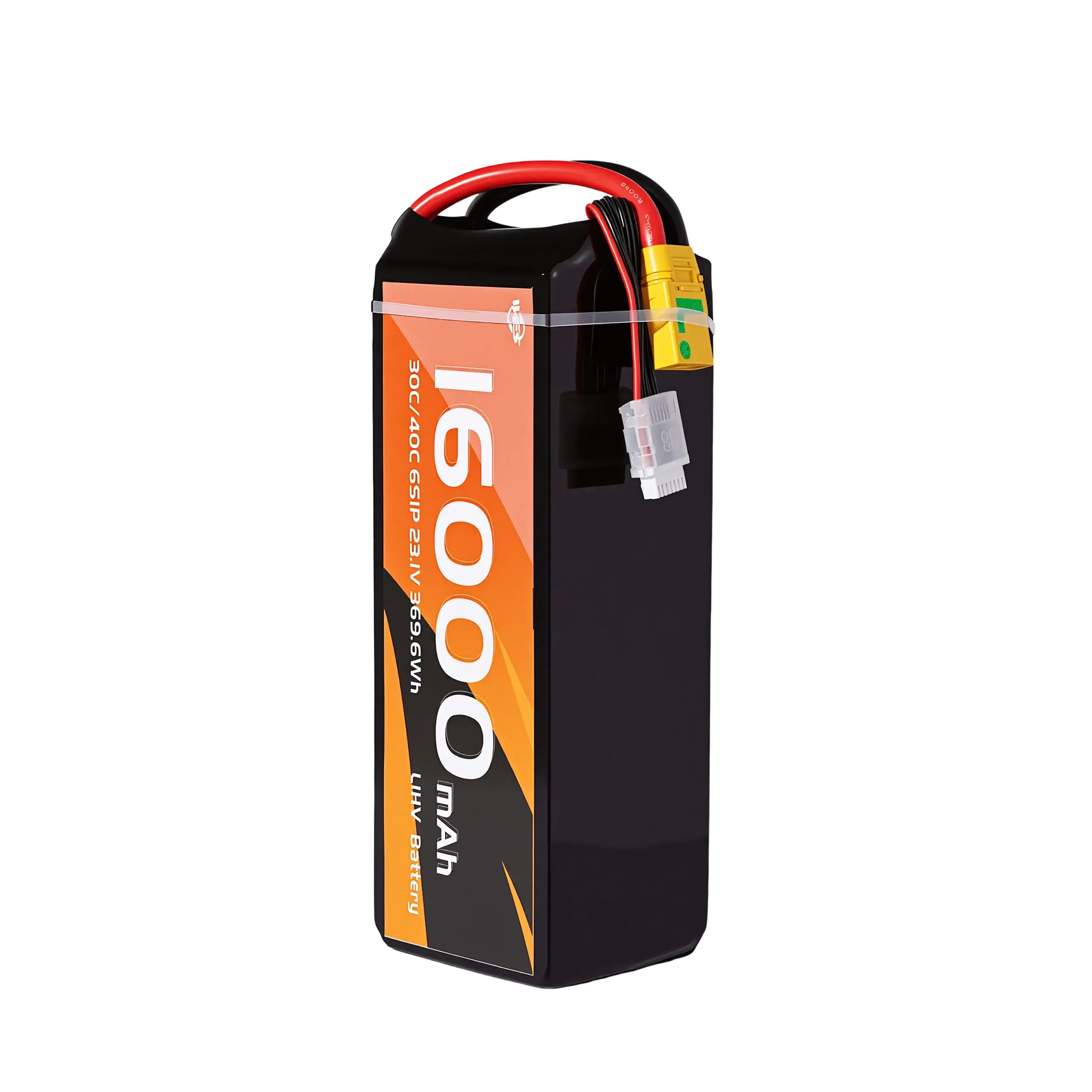

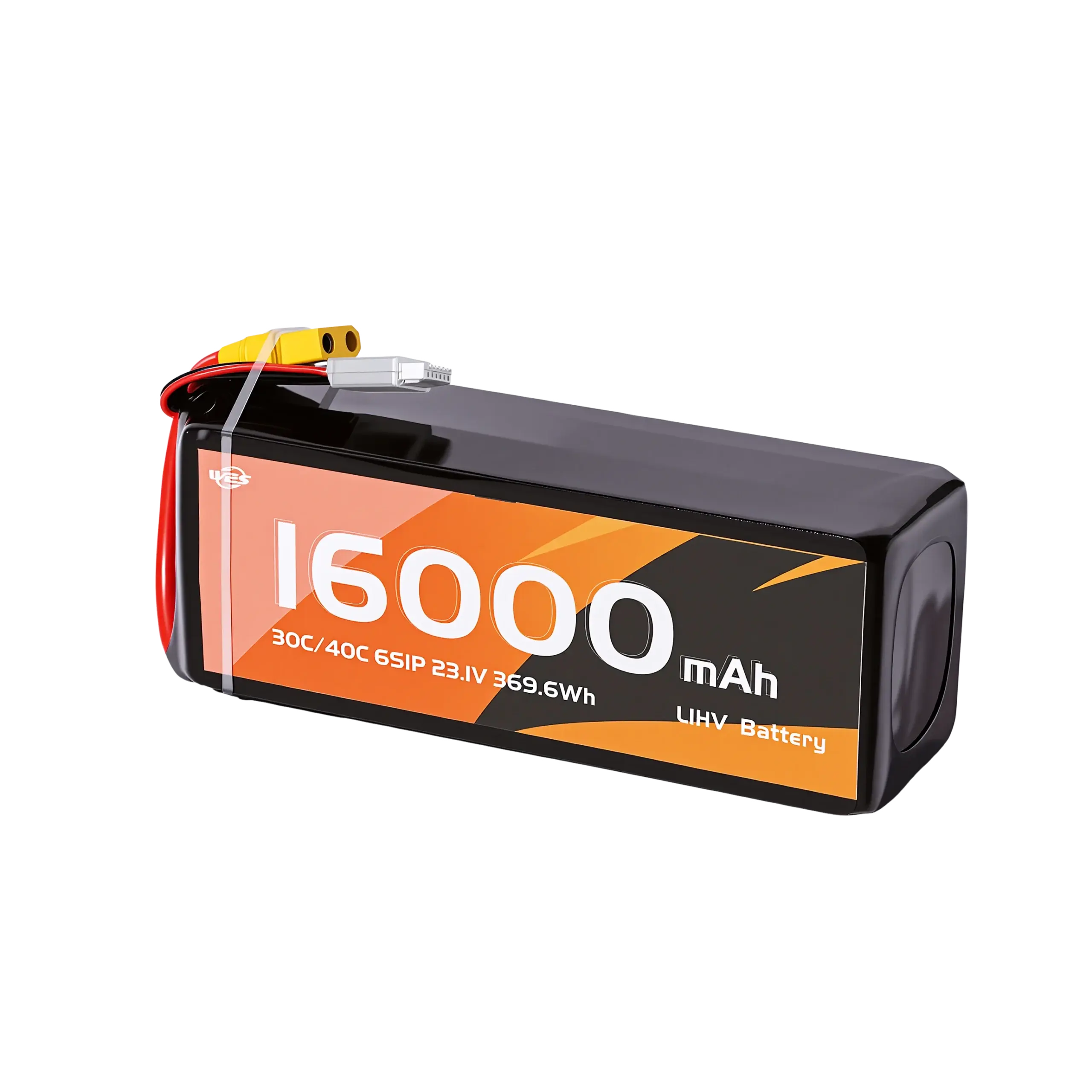

16000mAh 6S1P LiHV LiPo Battery Pack: High Energy Density UAV Battery for Heavy-Lift Drones
Maximize flight time for agricultural spraying and industrial surveying with the industry’s most trusted 6S 16000mAh power solution. Engineered for professionals who demand extended continuous operation on 10kg+ payload drones, this 16000mAh 6S1P LiHV LiPo Battery Pack delivers 7% more energy than standard LiPo packs through true 4.35V/cell LiHV chemistry.
Designed specifically as a heavy-lift drone battery, it provides the sustained 30C current and thermal stability required to keep heavy-payload multirotors airborne for 45+ minutes, even under variable load conditions during mapping or spraying missions. This isn’t a repurposed hobby pack—it’s a purpose-built high energy density UAV battery where every watt-hour is optimized for professional commercial use.
Why This 6S 16000mAh Battery Dominates Heavy-Lift Operations
Unlike generic 6S packs, our high energy density drone battery 6S solves the primary pain point for commercial operators: voltage sag during high-load missions. By utilizing advanced LiHV chemistry and low-internal-resistance tab welding, it ensures consistent power delivery when your payload needs it most.
🔋 Critical Advantages for Professional UAVs
- True 4.35V/cell LiHV Chemistry: Achieves 7% higher energy density than standard 6S LiPo at an identical 1600g weight, directly translating to longer endurance.
- 30C Continuous / 40C Pulse Discharge: Delivers stable power for gimbal, RTK, and spraying systems simultaneously, with no voltage drop at 480A continuous draw.
- Optimized Physical Footprint: At just 1600g and measuring 58×71×200mm, it offers the perfect power-to-weight ratio for 8-12kg payload drones, fitting seamlessly into most industrial frames.
Where This High Energy Density Drone Battery 6S Wins
🌾 Agricultural Spraying
Sustains 30C discharge for extended periods while powering dual pumps and RTK systems. The 23.1V nominal voltage prevents pump pressure fluctuations, which is critical for maintaining chemical application accuracy across entire fields.
🏗️ Industrial Inspection & Surveying
The 40C pulse discharge capability handles sudden wind gusts without causing system brownouts. Combined with a wide operational temperature range, this heavy-lift drone battery is ideal for detailed visual and thermal scans of power lines, pipelines, and wind turbines in extreme climates.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Series | WES High Performance Drone Battery |
| Chemistry | Lithium High Voltage Polymer (LiHV) |
| Configuration | 6S1P (6 Cells in Series) |
| Nominal Voltage | 23.1V (Max 25.8V) |
| Capacity | 16000mAh (369.6Wh) |
| Continuous Discharge | 30C (480A) |
| Pulse Discharge | 40C (640A, ≤10 sec) |
| Weight | 1600g (±20g) |
| Dimensions | 58 × 71 × 200 mm |
| Connectors | XT90 (main power), JST-XH (balance/telemetry) |
| Max Charge Current | 80A (5C recommended) |
Why Choose WES for Your Industrial Drone Power?
As the creator of the High Performance Drone Battery series, WESbattery brings proven expertise in high-energy-density cell engineering to the commercial UAV space. We don’t just assemble cells—we design the electrochemical system. Our 16000mAh 6S1P LiHV LiPo Battery Pack undergoes rigorous in-house cell grading, IR binning, and cycle testing (≥400 cycles at 80% DoD) to ensure full traceability and reliability from raw material to final pack.
This is the same engineering rigor trusted by survey companies and agricultural operators worldwide, now optimized for the 6S heavy-lift platform.
Frequently Asked Questions (FAQ)
Q1: Is this high energy density UAV battery compatible with standard 6S chargers?
A: Yes, but you must select the “LiHV” mode on your charger to reach the full 4.35V/cell charge voltage. Charging in standard LiPo mode (4.2V/cell) will result in roughly 7% less capacity and reduced flight time.
A: Yes, but you must select the “LiHV” mode on your charger to reach the full 4.35V/cell charge voltage. Charging in standard LiPo mode (4.2V/cell) will result in roughly 7% less capacity and reduced flight time.
Q2: Can I use this 6S 16000mAh battery on platforms designed for 22.2V standard LiPo?
A: Yes. While the nominal voltage is 23.1V, it is fully compatible with standard 22.2V 6S UAV systems. The higher voltage simply provides a fuller charge and extended runtime, provided your ESCs support up to 6S (25.2V-25.8V max input).
A: Yes. While the nominal voltage is 23.1V, it is fully compatible with standard 22.2V 6S UAV systems. The higher voltage simply provides a fuller charge and extended runtime, provided your ESCs support up to 6S (25.2V-25.8V max input).
Q3: How does this heavy-lift drone battery compare to dual 8000mAh 6S packs in parallel?
A: A single 16000mAh pack eliminates parallel connection resistance losses (yielding a 3–5% efficiency gain), reduces total wiring weight, and simplifies fleet charging logistics. It also provides more consistent cell balancing across the entire pack.
A: A single 16000mAh pack eliminates parallel connection resistance losses (yielding a 3–5% efficiency gain), reduces total wiring weight, and simplifies fleet charging logistics. It also provides more consistent cell balancing across the entire pack.
Q4: What’s the cycle life of this LiHV battery at 30C continuous discharge?
A: Under controlled lab conditions (25°C, 300A constant load, 80% DoD), it achieves ≥400 cycles with <10% capacity loss. Real-world agricultural and surveying use typically yields 250–350+ flights before noticeable degradation.
A: Under controlled lab conditions (25°C, 300A constant load, 80% DoD), it achieves ≥400 cycles with <10% capacity loss. Real-world agricultural and surveying use typically yields 250–350+ flights before noticeable degradation.
Q5: Do you offer bulk pricing for drone service companies?
A: Yes. As part of our B2B program, we provide volume discounts, custom labeling, and dedicated technical support for fleets operating multiple units. Contact our enterprise sales team for a tailored quote.
A: Yes. As part of our B2B program, we provide volume discounts, custom labeling, and dedicated technical support for fleets operating multiple units. Contact our enterprise sales team for a tailored quote.
