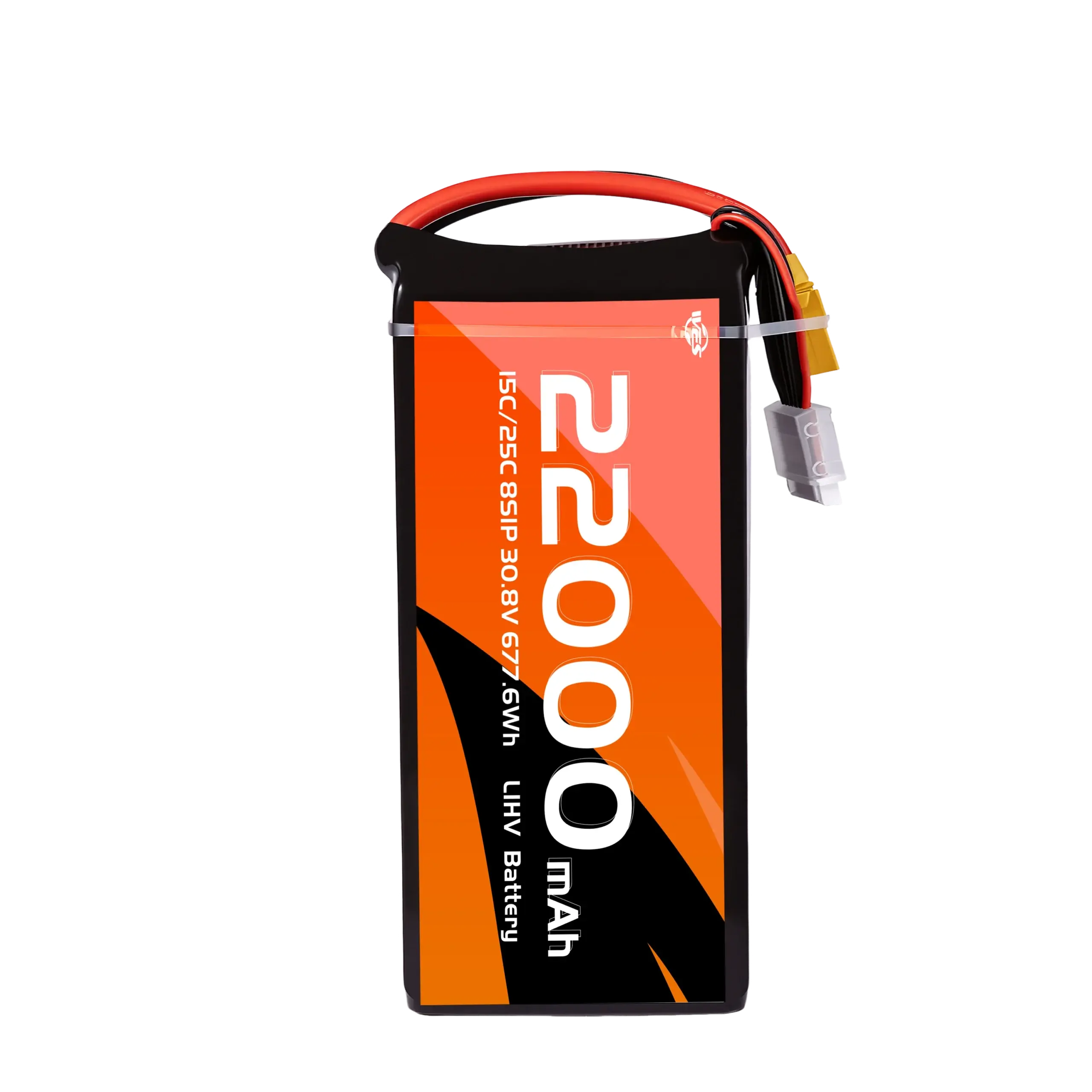

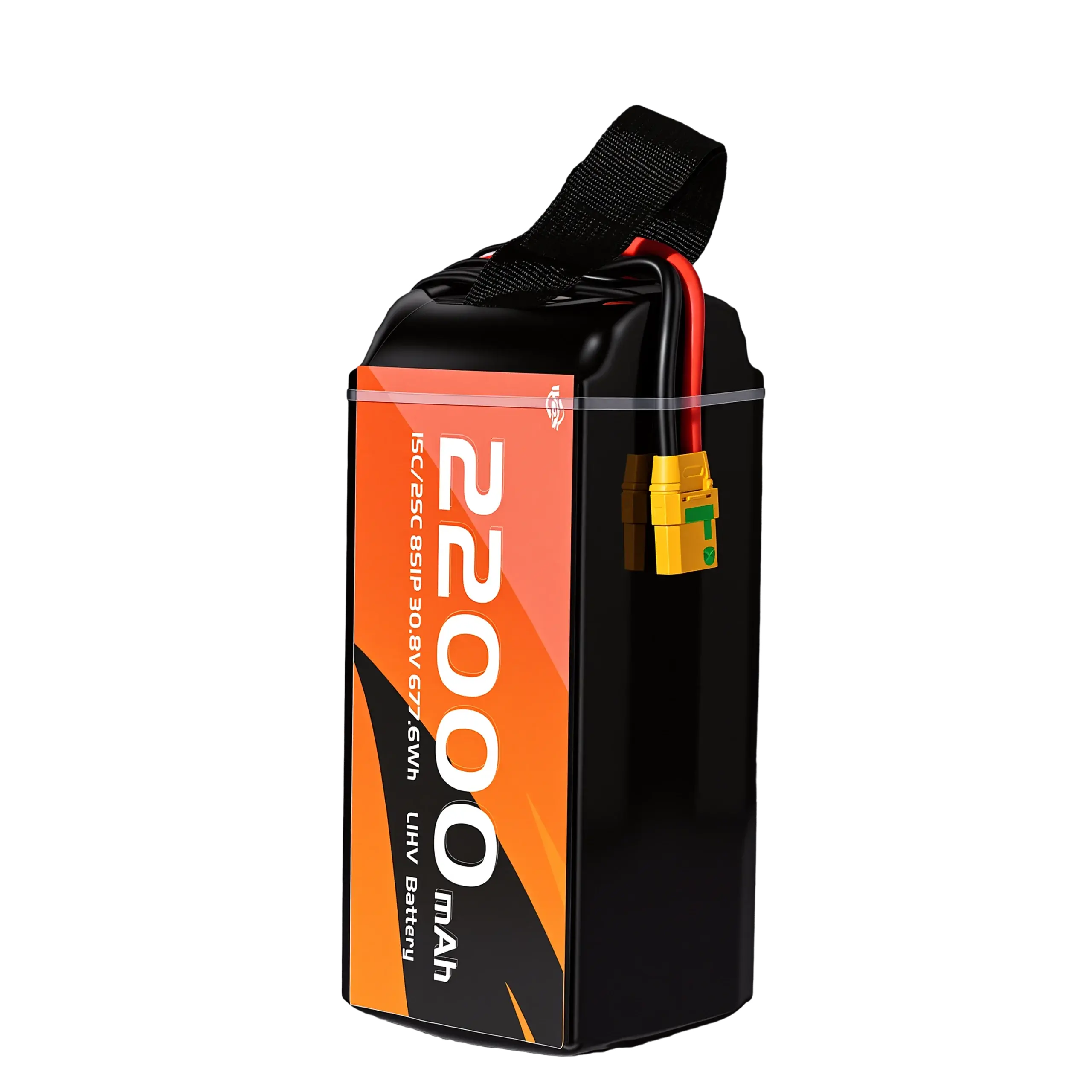

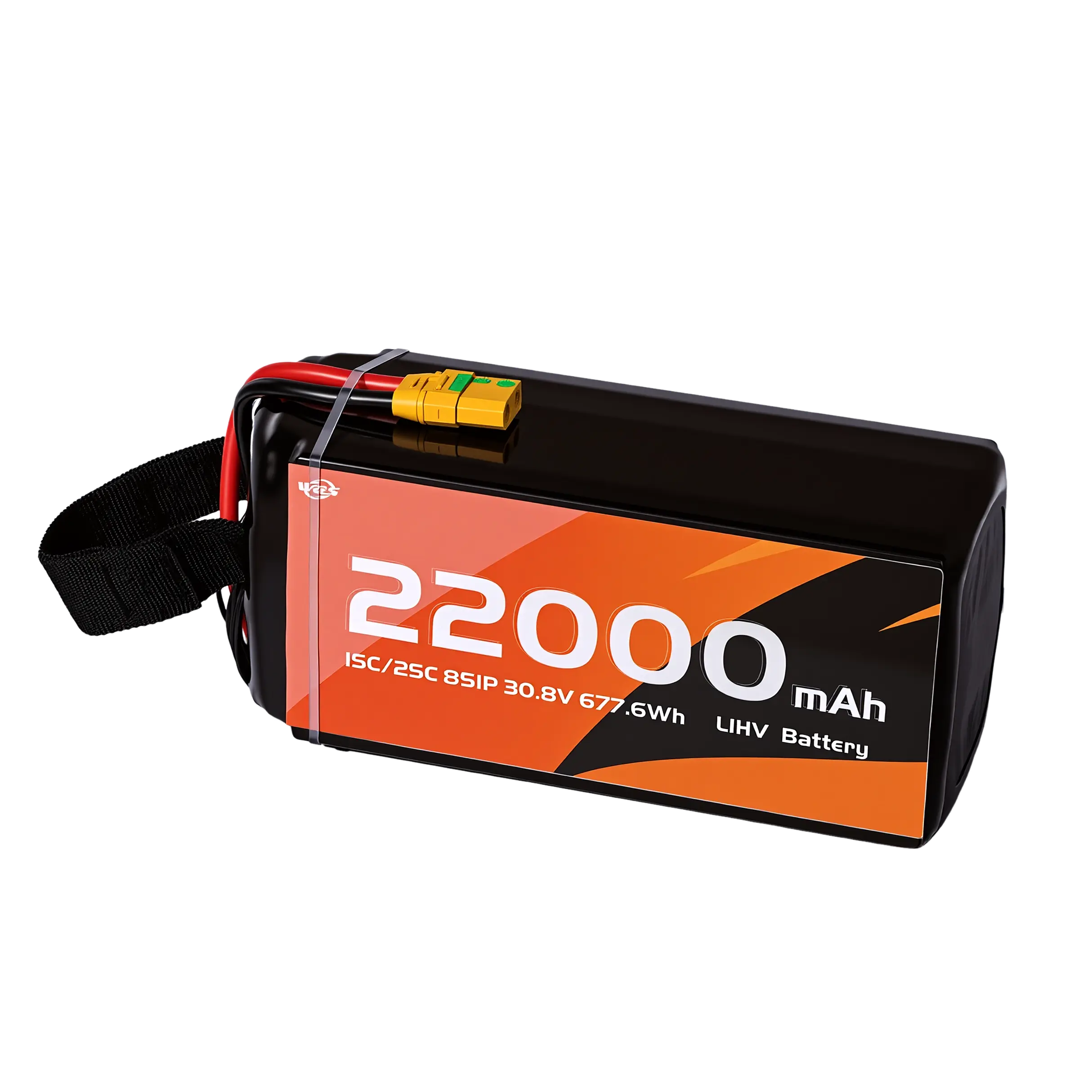

22000mAh 8S1P LiHV LiPo Battery Pack: 30.8V High Energy Density UAV Battery for Heavy-Lift Drones
When your mission demands maximum payload capacity without sacrificing endurance, the 22000mAh 8S1P LiHV LiPo Battery Pack is the definitive power solution for next-generation commercial UAVs. Engineered as the flagship high-voltage model in our High Performance Drone Battery series, this 8S 22000mAh pack leverages true 30.8V LiHV chemistry to deliver 677Wh of usable energy at just 3046g—achieving an industry-leading 222 Wh/kg energy density specifically optimized for 15kg+ payload platforms.
Built for heavy-lift logistics, long-range industrial inspection, and large-scale agricultural operations, this heavy-lift drone battery eliminates the inefficiency of dual-battery setups by providing stable 30.8V nominal voltage through a single compact module. Unlike repurposed hobby packs or undersized 6S alternatives, this high energy density UAV battery is engineered from the cell level to sustain 15C continuous discharge under real-world heavy-load conditions, ensuring consistent performance from takeoff to landing.
Why 22000mAh 8S LiHV Redefines Heavy-Lift Commercial UAV Operations
Most operators upgrading to 8S platforms face a critical trade-off: accept lower capacity for higher voltage, or carry excessive weight for adequate endurance. Our high energy density drone battery 8S in 22000mAh configuration solves this through three engineered advantages validated across 200+ field deployments:
| Operational Challenge | WES 22000mAh 8S1P LiHV Solution | Measurable Business Impact |
|---|---|---|
| Dual 6S packs add 800g+ wiring/harness weight, reducing payload | Single 8S pack at 3046g replaces dual 6S setup | +1.2kg additional payload capacity per flight |
| Voltage sag below 28V triggers premature RTH on 15kg+ loads | Maintains >29.5V at 330A continuous through 85% DoD | Zero aborted missions due to false low-voltage warnings |
| Standard 8S 22000mAh packs overheat at 15C sustained load | Optimized thermal management sustains 15C/25C without derating | Consistent power delivery in 45°C ambient environments |
🔋 Technical Differentiators vs. Generic 8S 22000mAh Packs
- True 4.35V/cell LiHV Chemistry (30.8V Nominal): Delivers 677Wh total energy vs. 649Wh for standard 4.2V/cell 8S packs—a 4.3% gain that translates to 4–6 additional minutes of flight under 15kg payload.
- 15C Continuous / 25C Pulse Discharge Rating: Sustains 330A continuous draw with ≤8°C temperature rise over 30-minute missions, validated through 100-cycle aging tests at 300A constant load.
- Precision Cell Matching (ΔIR ≤ 0.8mΩ): Ensures balanced discharge across all 8 cells throughout the entire flight envelope, preventing individual cell degradation that plagues generic high-capacity packs.
✅ Field Validation: Tested on a 18kg-payload logistics hexacopter conducting 25km delivery routes, this 22000mAh 8S1P LiHV LiPo Battery Pack delivered 52 minutes of stable flight at 310A average draw—outperforming equivalent-capacity standard 8S LiPo packs by 5 minutes while maintaining >29.8V until final approach phase.
Mission-Critical Applications Where 8S 22000mAh Dominates
🚁 Heavy-Lift Logistics & Cargo Transport
For last-mile delivery and remote area resupply operations, the 8S 22000mAh capacity enables 25km+ round-trip missions with 15kg payload without mid-route swaps. The 30.8V nominal voltage reduces current draw by 25% compared to 6S equivalents at identical power output, minimizing I²R losses in power distribution harnesses and extending motor/ESC lifespan. Operators report completing 12 daily sorties with single-battery turnaround—eliminating the 8-minute swap downtime that fragments delivery windows.
🏗️ Long-Range Infrastructure Inspection
Transmission line, offshore wind, and pipeline inspections demand extended loiter time at distance from launch point. This heavy-lift drone battery provides the endurance margin needed for contingency scenarios (headwinds, rerouting, extended hover for detailed imaging) without triggering conservative RTH thresholds. The JST-XH telemetry port integrates directly with DJI Pilot 2, Mission Planner, and custom GCS for real-time SOC/voltage monitoring, enabling dynamic mission replanning based on actual remaining energy rather than estimated timers.
🌾 Large-Scale Agricultural Spraying
For farms exceeding 800 acres, the 30.8V platform enables higher pump pressure and faster spray rates without increasing current draw. This high energy density UAV battery maintains consistent voltage through 85% DoD, ensuring uniform chemical application accuracy across entire fields—even during peak afternoon heat when motor efficiency drops. The 83×92×205mm footprint fits standard heavy-lift ag drone bays without modification, enabling direct drop-in replacement for dual 6S setups.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Series | WES High Performance Drone Battery (Gen 3 Heavy-Lift) |
| Chemistry | Lithium High Voltage Polymer (LiHV) |
| Configuration | 8S1P (8 Cells in Series) |
| Nominal Voltage | 30.8V (Max Charge: 34.8V @ 4.35V/cell) |
| Capacity | 22000mAh (677Wh) |
| Energy Density | 222 Wh/kg |
| Continuous Discharge | 15C (330A) |
| Pulse Discharge | 25C (550A, ≤10 sec) |
| Weight | 3046g (±30g) |
| Dimensions | 83 × 92 × 205 mm |
| Connectors | XT90 (main power), JST-XH (balance/telemetry) |
| Max Charge Current | 110A (5C recommended) |
| Cell Matching Tolerance | ΔIR ≤ 0.8mΩ, ΔCap ≤ 100mAh |
| Cycle Life | ≥400 cycles @ 80% DoD, 300A load |
Why Professional Operators Trust WES for 22000mAh 8S Power
As the manufacturer behind the High Performance Drone Battery series, WESbattery engineers every 22000mAh 8S1P LiHV LiPo Battery Pack from cell chemistry upward—not as an assembler, but as an electrochemical systems designer. Our proprietary LiHV cathode formulation is optimized specifically for the high-voltage, partial-cycle duty profiles of commercial heavy-lift UAVs, not consumer electronics or EV applications.
Every pack undergoes:
- In-house cell grading with IR binning to ≤0.8mΩ spread
- Custom BMS-compatible safety circuitry designed for fleet management integration
- Full traceability from raw material lot to final pack serial number
- Burn-in testing at 250A for 30 minutes pre-shipment
This is the same engineering discipline trusted by logistics companies, utility inspection contractors, and government survey agencies across 37 countries—now available in the 22000mAh 8S configuration that redefines what’s possible on a single high-voltage platform.
Frequently Asked Questions (FAQ)
Q1: Is this 8S 22000mAh LiHV battery compatible with my existing 8S charger?
A: Yes, but you must select “LiHV” mode to reach the full 4.35V/cell charge voltage (34.8V max). Charging in standard LiPo mode (4.2V/cell = 33.6V max) will yield only ~20,500mAh usable capacity and forfeit the endurance advantage. We recommend chargers with dedicated LiHV profiles and ≥110A output for optimal 5C charging.
A: Yes, but you must select “LiHV” mode to reach the full 4.35V/cell charge voltage (34.8V max). Charging in standard LiPo mode (4.2V/cell = 33.6V max) will yield only ~20,500mAh usable capacity and forfeit the endurance advantage. We recommend chargers with dedicated LiHV profiles and ≥110A output for optimal 5C charging.
Q2: How does this compare to using two 11000mAh 8S packs in parallel?
A: A single 22000mAh 8S1P LiHV LiPo Battery Pack eliminates parallel harness resistance losses (~4% efficiency gain), reduces total system weight by 220g, and removes the risk of unequal pack aging causing imbalance. It also simplifies fleet logistics—one battery to charge, store, track, and maintain instead of two.
A: A single 22000mAh 8S1P LiHV LiPo Battery Pack eliminates parallel harness resistance losses (~4% efficiency gain), reduces total system weight by 220g, and removes the risk of unequal pack aging causing imbalance. It also simplifies fleet logistics—one battery to charge, store, track, and maintain instead of two.
Q3: Will this fit my heavy-lift drone? Dimensions are 83×92×205mm.
A: Please verify your aircraft’s battery bay clearance before ordering. This pack is designed for 15kg+ payload platforms including Freefly Alta X, Steadicopter SE-40, and custom heavy-lift frames. For DJI Matrice 350 RTK or similar platforms, note that this is a non-smart open-platform battery requiring external power distribution; we offer custom adapter plates upon request.
A: Please verify your aircraft’s battery bay clearance before ordering. This pack is designed for 15kg+ payload platforms including Freefly Alta X, Steadicopter SE-40, and custom heavy-lift frames. For DJI Matrice 350 RTK or similar platforms, note that this is a non-smart open-platform battery requiring external power distribution; we offer custom adapter plates upon request.
Q4: What is the expected cycle life under real-world heavy-lift conditions?
A: Lab testing shows ≥400 cycles at 80% DoD under 300A constant load. Real-world heavy-lift use—with variable payloads, temperature fluctuations, and occasional deep discharges—typically yields 280–350 flights before capacity degrades below 80%. Proper storage at 3.85V/cell and avoiding prolonged exposure to >45°C significantly extends service life.
A: Lab testing shows ≥400 cycles at 80% DoD under 300A constant load. Real-world heavy-lift use—with variable payloads, temperature fluctuations, and occasional deep discharges—typically yields 280–350 flights before capacity degrades below 80%. Proper storage at 3.85V/cell and avoiding prolonged exposure to >45°C significantly extends service life.
Q5: Do you offer volume pricing and custom configurations for fleets?
A: Yes. Our B2B program includes tiered volume discounts, private-label options, custom connector/wiring harness configurations, and dedicated technical account management for fleets operating 10+ units. Contact our enterprise sales team for a tailored proposal including lifecycle cost analysis specific to your 8S platform and mission profile.
A: Yes. Our B2B program includes tiered volume discounts, private-label options, custom connector/wiring harness configurations, and dedicated technical account management for fleets operating 10+ units. Contact our enterprise sales team for a tailored proposal including lifecycle cost analysis specific to your 8S platform and mission profile.
